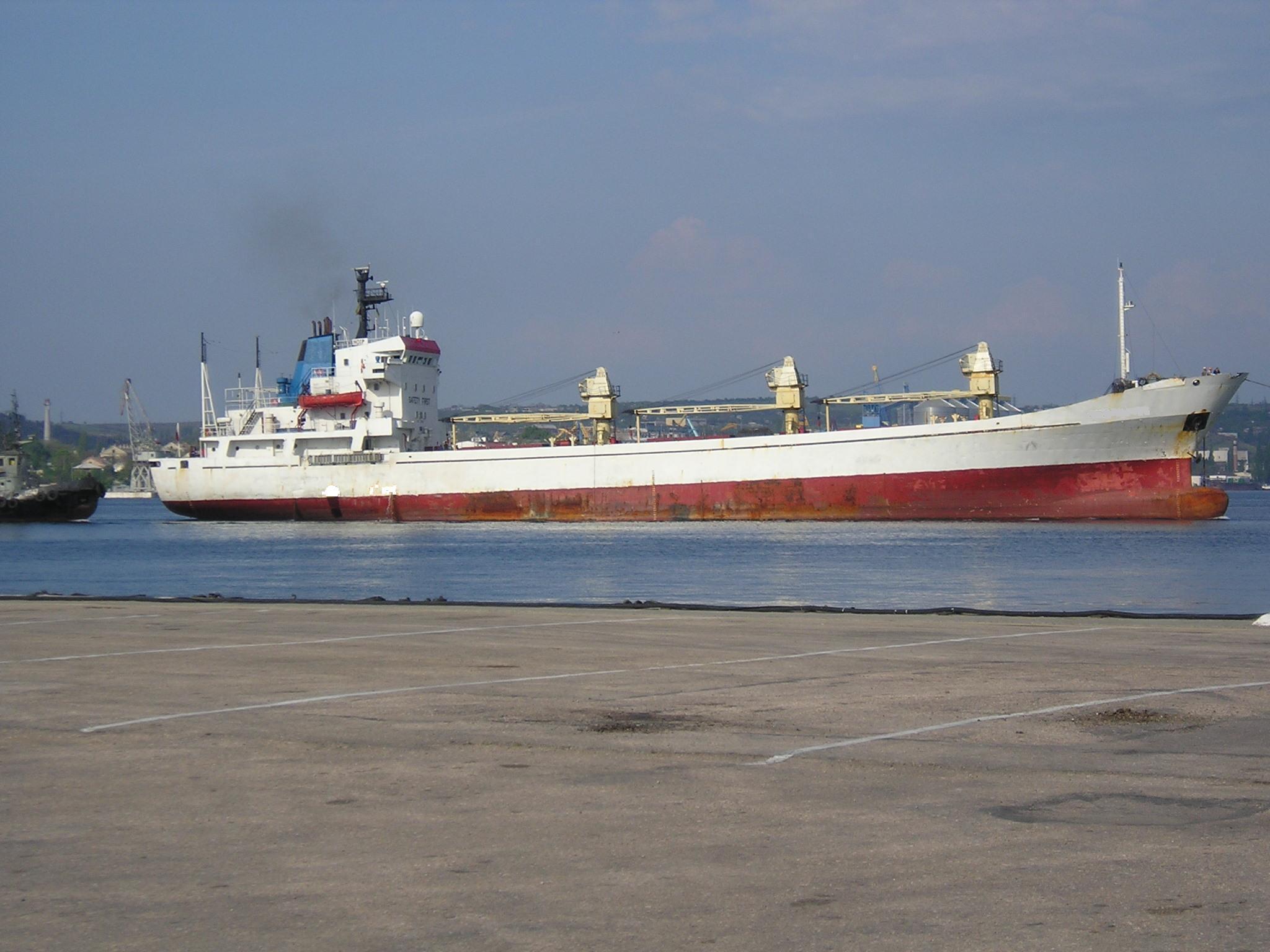

F240 - REEFER

view1
Flag: Russia
Built: 1980, Sevilla, Spain Classification: BV and MRS Class: I + HULL + MACH (Refrigerated cargo ship, Unrestricted navigation)/ÊÌ*1 Next SS: 01.2008; Last DD: June, 2005
DWT: 4392 Mt
GRT/NRT: 3835/1359 Mt
Length o.a.: 103 m
Breadth: 16,01 m Depth: 9,53m
Summer draft: 6.66 m Cargo gear: 3 electro hydraulic CRANES with 2,5 ts each, outreach 6 m
Temperature range: from -20 DC to +12 DC\ 4 different temp.
M/E: B&W 5K45GF, 4400 BHP (3236 KW) Auxiliaries: CUMMINGS KTA-19G4 , 3 sets x 412 KW , 1800 RPM Reefer plant: 3 sets MYKOM , R-22 +brine Holds/Hatches/Compartments: 4/ 4/ 12 Bunkers capacity: IFO - 600mt; MDO - 150mt; FW - 178mt
Breakdown:
Hold Ñapacity (cbft) Deck area Deck height Hatch size
¹ (M2) (M) (M x M)
1 A 11 975 80,00 2,20
1 B 4 231 55,00 2,20 7,68 x 3,7
1 C 3 372 25,00 2,20
Total ¹ 1 19 578 160,00
2 A 23 414 225,00 2,20
2 B 17 138 210,00 2,20 7,68 x 3,7
2 C 15 394 176,00 2,20
Total ¹ 2 55 946 611,00
3 A 23 057 243,00 2,20
3 B 19 858 242,00 2,20 7,68 x 3,7
3 C 20 200 233,00 2,20
Total ¹ 3 63 115 718,00
4 A 23 432 241,00 2,20
4 B 18 685 230,00 2,20 7,68 x 3,7
4 C 17 269 192,00 2,20
Total ¹ 4 59 386 663,00
SUB-TOTAL 198 025 2 152,00
Speed\ Consumption: laden: 12 knots on 12mt IFO-120; 2,8mt MGO\ day in ballast: 12,5 knots on 12mt IFO-120; 1,5mt MGO\ day
In port: cooling "on" - 2,5mt MGO\day; cooling "off" - 1,4mt MGO\day

Inspection: Black Sea
