F234 - STERN TRAWLER

view1 view2 view3 view4 view5 view6 view7

Type: Stern Trawler
Built: 1976, Canada Class: CSI, last DD - 2002 Flag: Canada, will be changed to Cook Islands
Hull: Steel
Length: 42.98 m
Breadth: 11 m
Depth: 6.46 m
GRT/ NRT: 791.83/ 374.40 t

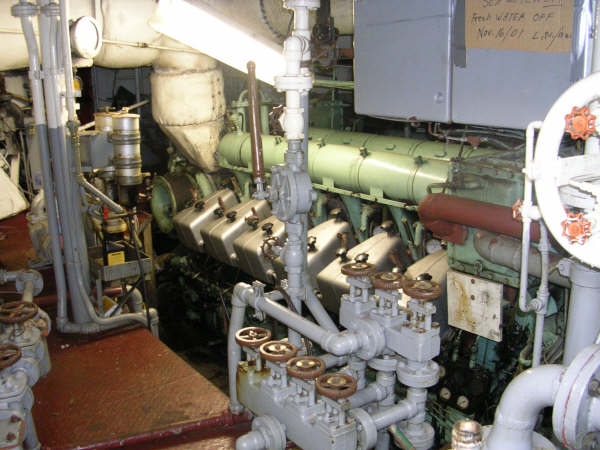

Main Engine: Nohab Polar, 2400 h.p. Aux. Engines: Detroit-871, 280 h.p. x 1, Detroit-353, 90 h.p. x 1

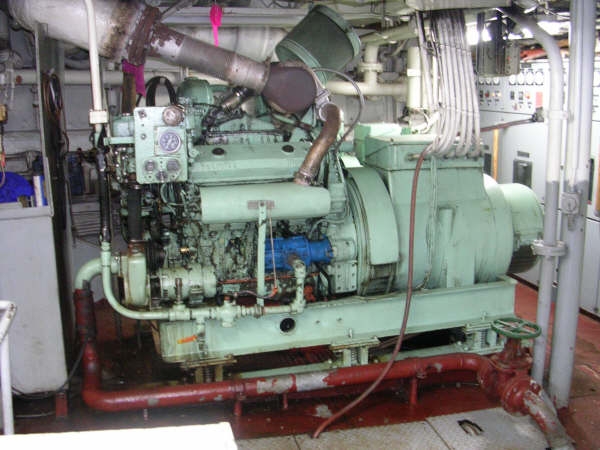

Generator Engines: #1 - 231 KVA; #2 - 81 KVA Shaft Generator: 320 KVA
Gas oil tank: 176.24t Fresh water tank: 64.97t Speed: 10 knots Consumption: 4t\ day
Fish Hold capacity: 250 tons, t -5C
Accommodation: 18 persons, min crew - 7 persons
Hull and Deck:
Thickness of hull - 1\2 variable
Ice strengthened from bow to midships in 1978
Last dry docked in 1999
"A" Frame - midships and aft

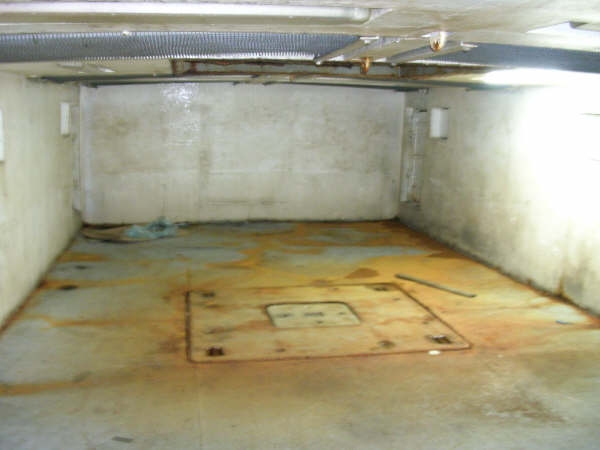

Hold capacity - 378 ì3
Tweendeck - 87 ì3

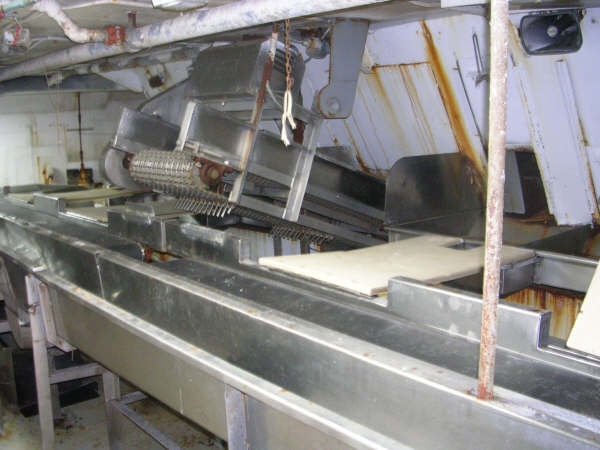

Fish factory - 183 ì3
Trawl winch capacity: D-26 mm L- 2300 mtr
D-28 mm L-2000 mtr
Twin drum - Hydraulic
Line winches - Hydraulic
Anchor winch - Hydraulic
Dinghy - 18 ft fiberglass boat
Davit boom - Hydraulic crane

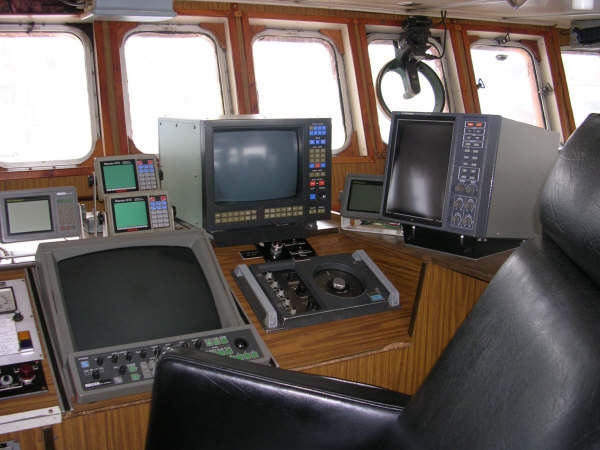

Electro-navigational equipment:

Gyrocompass - SPERRY
Magn. compass - CASSENS & PLATY
Radars - FURUNO, KODEN MD-3210 MK 2
Sounder - ATLAS FISCHEFINDER, FURUNO FCV - 363
Plotter - TRACK COLOR
GPS - KODEN KGP 931D
GPS - KODEN KGP 930
LORAN C Ray Nav 570 x 2 units
Auto pilot - DECCA
Radio - SSB RAY 150, SSB MARINER 2500
VHF - SAILOR RT 144B

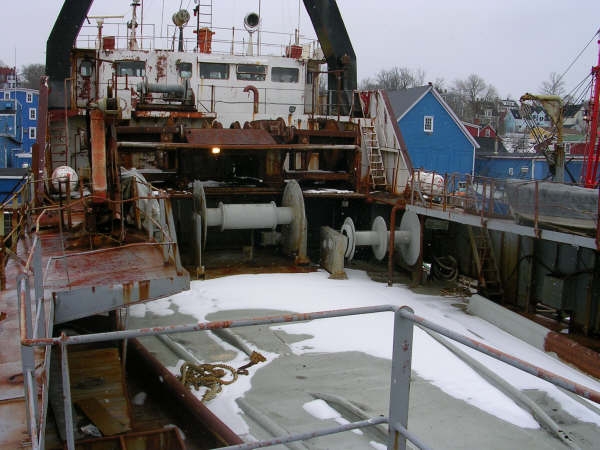

Trawl equipment:

Trawl winch - Elecro -24 t bollard
Net drum - Hydraulic
Trawl net sound winch - Hydraulic
2 x line winches - Hydraulic
AFT - Windlass x 2

The vessel can use pelagic and bottom trawls and she is able to work with two trawls at the same time.
Inspection: Canada
