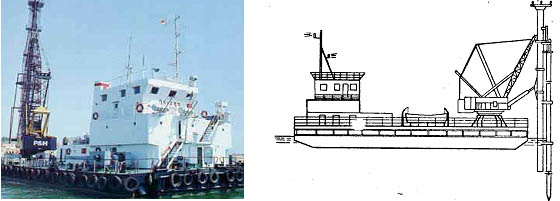

FLOATING PILE - DRIVER
Universal floating not self-propelled pile driver is intended: for poling of vertical and inclined piles in length up to 27m at construction of piers, quays, dams and other hydraulic engineering constructions; for driving of grooved piles; for use as the crane at an overload of piles and grooves from coast and barges, and also for drawing of piles and work with clamshell.
Built: 1978, Japan
DIM: 41,00m x 17,00m x 3,5m
Draft: 2,4m
GRT: 739t
Angle of pile driver mast slope, deg:
Toward itself - 13;
Away from itself - 18;
Useful height of gibbet: 27,43m
Set of pile-driving equipment: 24
Leader hammer: MRB100A, SB400
Diesel hammer: K-35
Hoisting machine - crane operating mode, carrying capacity:
On crane radius 10,7m - 45t
On crane radius 24m - 20t
Clamshell operating mode:
Carrying capacity on crane radius 13,8-19m - 16t
M\E: 8×H 25/34 x 2, 600 hp
Location: Russian Far-East
