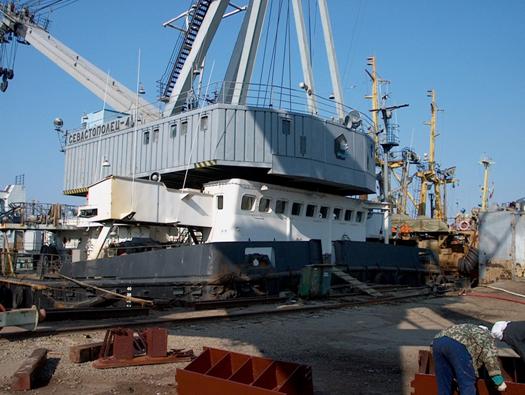

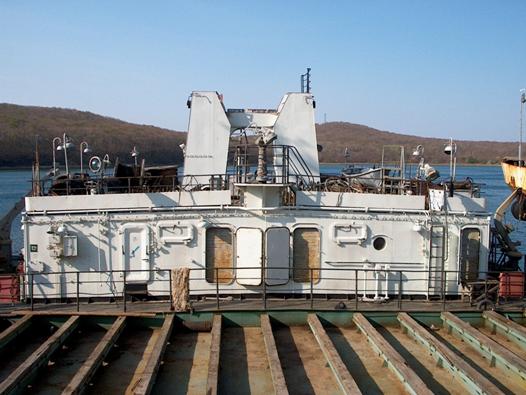

Class: KM * L3 I P A2 Floating crane
Next Special Survey: April, 2005

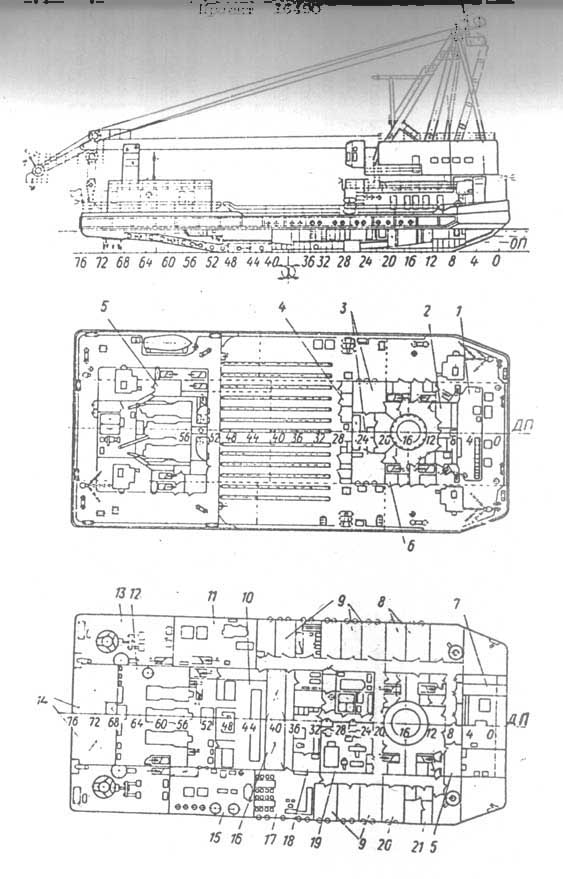

Pontoon Dims: 46.8 / 45.1 x 21.0 x 4.0 m
Draft: 2.2 m
Light Displacement: 1500 t
Load Line Displacement: 1956 t
Built 1989, Sevastopol, Ukraine

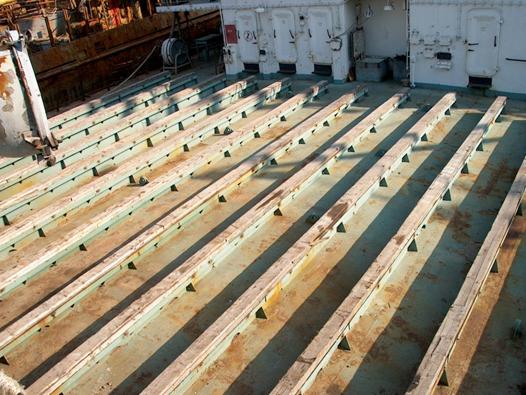

Max Deck Cargo: 300 mt,

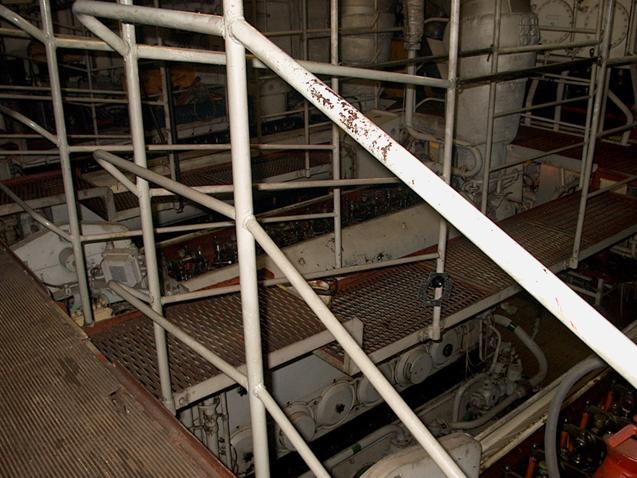

M/E 2 X Diesel Generators - DGR 2A 500\500, POWER 2 X 500 kwt,
1 Diesel Generator DGR 2A 320, POWER 320 kwt,
Standby Diesel GeneratorDGR100/750, 100 kwt,
Auxiliary Diesel Generator DGA 25-9, 25 kwt,
2 X GMS 14-41-12 Generators, 500 kwt, 400 V, 50 Hz each,
1 X GMS 13-41-12 Generator, 320 kwt, 400 V, 50 Hz,

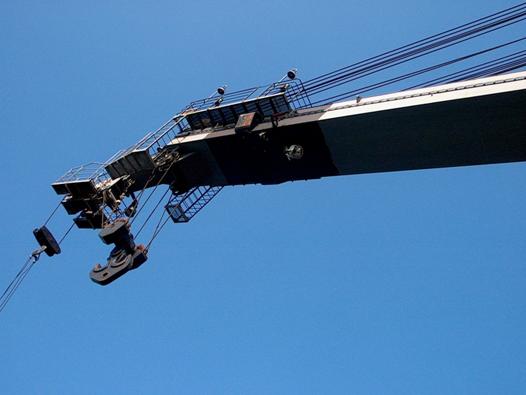

Lifting Capacity (Main lifting) : 140 mt
Max Horizontal Outreach (Board): 18 m
Max Outreach (Bow): 20 m
Min Horizontal Outreach: 13 m
Height of hook above water level:
Max Outreach - 33 m
Min Outreach - 35 m
Lifting Capacity (Auxiliary lifting) : 32 mt
Max Horizontal Outreach : 36,5 m
Min Horizontal Outreach : 16,3 m
Height of hook above water level:
Max Outreach - 22 m
Min Outreach - 40 m
Max depth of hook under water level: 20 m
Autonomy: 30 days
Delivery: Russian Far East
Keen Sellers, Try offers at market level
