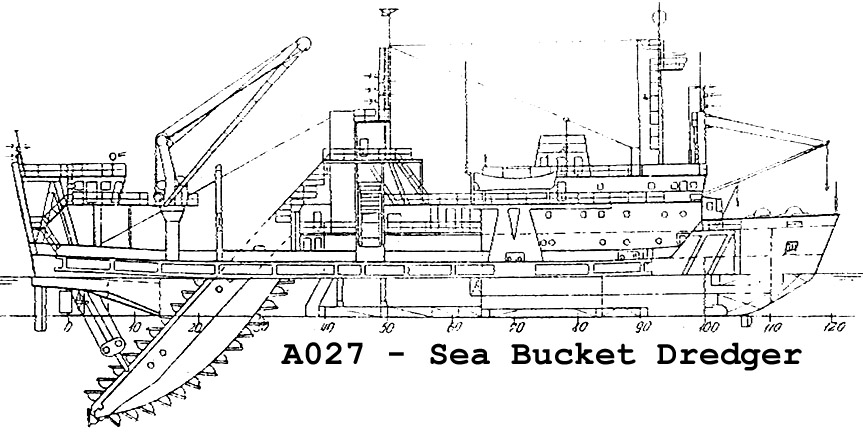

Type:
self-propelled bucket dredger with diesel-electrical drive, with work
arrangements at stern part, living rooms at bow part, engine room at middle part,
to the stern screw engines and scoop, twinscrew, two rudders, can work only
inblock with barge or landing craft
Built:
1988, Neptun werft (Rostok) Germany, #114
Classification:
KM* L3 (I) 1 A2 (dredger)
L
max: 80,17 m
L
max with scoop frame up: 95,43 m
L
b.p.: 70,88 m
B
without external planking: 14,4 m
B
max: 14,8 m
D:
5,2 m
Loaded
draft: 3,75 m
Freeboard:
1462 mm
Draft
with scoop frame, 100% stores, ground in scoops: 3,73 m
FDT/LDT:
3066/2463,3 mt
Displacement
at draft 3,73 m: 3052 t
DWT:
583 t
GRT/NRT:
2081/624 rt
Speed:
7,3 knots
Derricks:
1 x 5,5 t at foredeck, vessels crane 1 x 8 t
Main
engines: 1 x 970 KWT (1320 h.p.) consumption 5,5 t DO, 1 x 736 KWT (1000 h.p.)
consumption 5,5 t DO, totally 1706 KWT, made in 1988, Dresden, Germany
Performance
output: 570 KWT
Working
limitations: sea max 7 points, waves height upto 3,7 m, outside tC till
10 DC, working materials hard grounds of VI and VII categories of Russian
standards
Depth
of dredging: max 18-24 m, optimal 11-14 m, scooping at dry shore 16 m
Buckets
number: 54 pcs
Bucket
dimensions: 1,5 m x 1,2 m, weight 2 t
Bucket
(scoop) capacity: 775 CBM
Dredging
speed: 19-20 buckets per minute
Output
750 CBM/HR: at 12 m of dredging depth, waves 0,5 m, V ground
category, sticking ability 1,47 N/sq.cm, scooping lay not less than 1,5 m
Output
300 CBM/HR: at 24 m of dredging depth, waves 0,5 m, V ground
category, sticking ability 1,47 N/sq.cm, scooping lay not less than 1,5 m
Output
520 CBM/HR: at 12 m of dredging depth, waves 0,5 m, VI ground category
Output:
325 CBM/HR: at 12 m of dredging depth, waves 0,5 m, VII ground category
Speed
of scoops emptying: 2-30 scoops per minute
Stores:
DO 53,8 t, high
viscosity fuel 183,8 t, lub oils 10,9 t, boiling water 82,4 t, washing water
73,9 t, fresh water 83,4 t, provision 7 t, vessels stores 5 t
Waste:
waste oil 6,4 t, tank of hold oil 3 t, tank of oil sludge 10,6 t, tank of dirty
water 49,4 t, faecal-sewage water 10,9 t
Other
stores: hold water 25,9 t, pouring tank of high viscosity fuel 11,2 t, tank
of ballast water 275,2 t
Waterproof:
8 pcs (14/23/40/65/84/100/110)
Navigational
equipment: gyrocompass Vega, magnetic main compass Arkona 190 mm,
echo-sounder NEL-M3B, electronic log NEL-2M, radio pelengator Rybka, RLS
Pechera-2
Maneuverability:
full forward performance stop 800 m (8 min.); middle forward performance
stop 730 m (6 min.); low forward performance stop 550 m (5 min.); the lowest
forward performance stop 270 m (4 min.); full forward-full reverse
performance stop 320 m (2,2 min.); the lowest forward-full reverse
performance stop 75 m (1 min.)
Anchor
gear: 2 x 1760 kg anchors Gruzon, 1 x 1760 kg spare anchor, chain 225
m, diameter 43 mm, vertical capstans 2 x 6,5 t bollard pull; special working
anchors 2 x 3040 kg, 7 x 1980 kg
Hull:
material steel
Dredger
insertion data: L 6 m, B 2 m, D 3,5 m, weight 14,2 t
Max
breadth of slash: 120 m
Max
breadth of scoop: 1435 mm
Working
(dredging) range: 30 days
Sailing
range (at fuel stores): 20 days
Sailing
region: limited I region, open seas with ship not exceeding of 200 miles
from place of refuge, with permissible distance between places of refuge 400
miles; with no limitations at closed seas
Crew:
27 persons
Salvage
appliances: for 34 persons
Class
till 2008
DD
till 2008.
Price
idea: 2.600.000
USD
