T089 - double-screw

View1 view2 view3 view4

Two sister-vessels:
First one
~~~~~~~~
Year Built:1987
Place Built:Russia, Navashino
Loading Capacity:4522.0 t
Ship Type - The double-screw, single-deck motor ship with short forecastle,
long poop, after engine room and superstructure, raked bow and transom
stern.
Flag:RUS
Class:ÊÌ * Ë1 [1] I A2
Classification society:RS
Service speed laden:9.7
Service speed ballast:8.0

Length o.a.: 124.40 m
Length between perpendiculars: 117.0 m
Breadth: 15.80 m
Depth: 7.50 m
Overall height above base line: 33.60 m
Draft summer load line: 5.50 m
Deadweight: 5029.0 t
Grain: 6800.0 m3
Bale: 6680.0 m3
Containers TEU: 165
Containers FEU: 78
Register tonnage gross: 4643
Net: 1798
Suez canal capacity brut: 4973.60
Net: 3686.03
Type of hatch covers: Watertight hydraulic folding hatch covers
Crane (boom 13.0 m): 4x8.0, 1x3.2t (Electro-hydraulic, ÊÝÃ 8018)

PERMISSIBLE LOADING
On tank top: 7.4 t/m2
On deck: 4.0 t/m2
On hatch covers: 1.75 t/m2
Weight of cargo in holds: N1 - 1400 t; N2,3,4 - 1600 t

Notes: The table of main particulars contain the ship's breadth in way of
SWL the ship's overall breadth is 16.4 m.

Hold Size/Hatch size
1. 17.5 x 8.2/15.0 x 6.2/1 x 13.3 x 10.58
2.17.0 x 12.8 x 6.6/1 x 13.3 x 12.8
3. 17.3 x 12.8 x 6.6/1 x 13.3 x 12.8
4. 17.5 x 12.8 x 6.6/1 x 13.3 x 12.8
(m) Grain / Bale
1. 1850.0 / 1730.0
2. 1650.0 / 1650.0
3. 1650.0 / 1650.0
4. 1650.0 / 1650.0

DAILY FUEL CONSUMPTION
Recommended IFO RMA/ DO 10Gasoil DMA
Viscosity, IFO Cst 40.0/ DO 6.0
At sea, t IFO 7.8/ DO 1.0
In port, with cargo operation DO 2.0
In port, without cargo operation DO 1.6
For maneuver, kg/h DO 133
Ship's store (bunker),t I.F.O. 180.0 DO 115.0

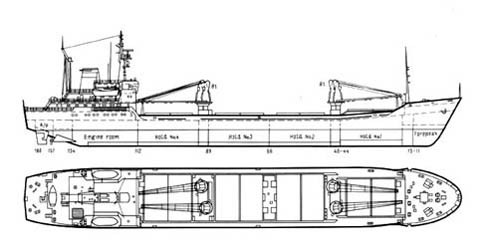

Photos and GA plan available
Next SS: 19.02.2008
Last DD: 16.05.2005

Price idea: 2,8 MIO USD, try less

+++++++++++++++++++++++++++++++++++++++

Second unit
~~~~~~~~
Year Built:1988
Place Built:Russia, Navashino
Loading Capacity:4522.0 t
Ship Type - The double-screw, single-deck motor ship with short forecastle,
long poop, after engine room and superstructure, raked bow and transom
stern.
Flag:RUS
Class:ÊÌ * Ë1 [1] I A2
Classification society:RS
Service speed laden:9.7
Service speed ballast:8.0

Length o.a.: 124.40 m
Length between perpendiculars: 117.0 m
Breadth: 15.80 m
Depth: 7.50 m
Overall height above base line: 33.60 m
Draft summer load line: 5.50 m
Deadweight: 5029.0 t
Grain: 6800.0 m3
Bale: 6680.0 m3
Containers TEU: 165
Containers FEU: 78
Register tonnage gross: 4643
Net: 1798
Suez canal capacity brut: 4973.60
Net: 3686.03
Type of hatch covers: Watertight hydraulic folding hatch covers
Crane (boom 13.0 m): 4x8.0, 1x3.2t (Electro-hydraulic, ÊÝÃ 8018)

PERMISSIBLE LOADING
On tank top: 7.4 t/m2
On deck: 4.0 t/m2
On hatch covers: 1.75 t/m2
Weight of cargo in holds: N1 - 1400 t; N2,3,4 - 1600 t

Notes: The table of main particulars contain the ship's breadth in way of
SWL the ship's overall breadth is 16.4 m.

Hold Size/Hatch size
1. 17.5 x 8.2/15.0 x 6.2/1 x 13.3 x 10.58
2.17.0 x 12.8 x 6.6/1 x 13.3 x 12.8
3. 17.3 x 12.8 x 6.6/1 x 13.3 x 12.8
4. 17.5 x 12.8 x 6.6/1 x 13.3 x 12.8
(m) Grain / Bale
1. 1850.0 / 1730.0
2. 1650.0 / 1650.0
3. 1650.0 / 1650.0
4. 1650.0 / 1650.0

DAILY FUEL CONSUMPTION
Recommended IFO RMA/ DO 10Gasoil DMA
Viscosity, IFO Cst 40.0/ DO 6.0
At sea, t IFO 7.8/ DO 1.0
In port, with cargo operation DO 2.0
In port, without cargo operation DO 1.6
For maneuver, kg/h DO 133
Ship's store (bunker),t I.F.O. 180.0 DO 115.0

Photos and GA plan available
Next SS: April 2009
Next DD: 28.06.2007

Price idea: 2,8 MIO USD, try less
Selling can be both en-block or separate.
Location: Russian Far East
