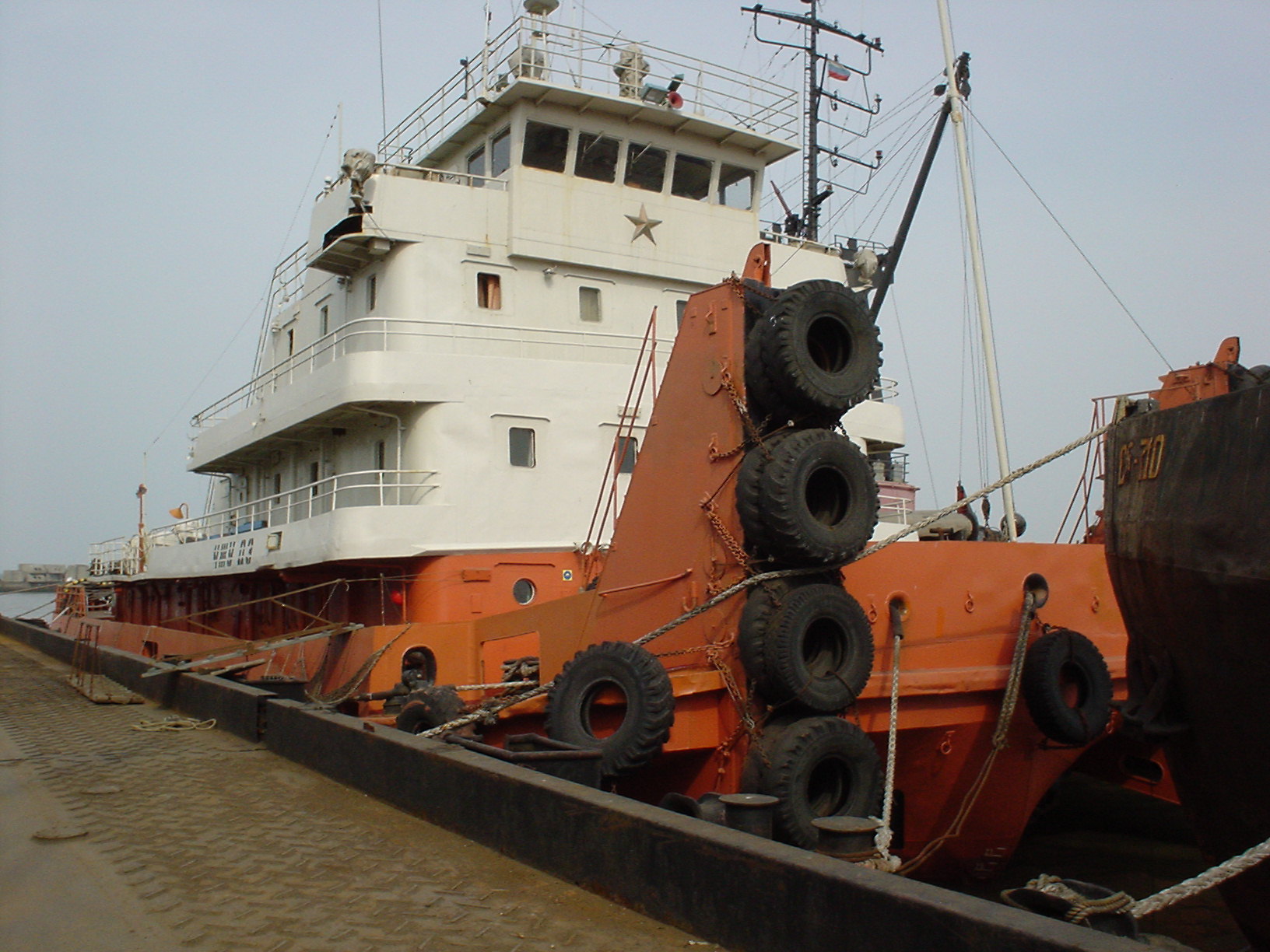

B017 - Tug. Pusher

view1 view2 view3 view4

Flag: Russia
Built: 1979 Hungary
Class: KM LUZ 1 III SP
Navigation area: coastal, roadsted and harbour service within the limits specified by USSR Register of Shipping in each case. Navigation not more than 50 miles away from the place of refuge
LOA: 45,43 m
LBP: 42,85 m
B: 12,02 m
D: 3,3 m
DRFT: 2,15 m
DRFT full: 2,15 / 1,87 m
DISPLACEMENT (summer draft): 736 RT
DWT: 137 RT
GRT: 681 RT
NRT: 204 RT
Maximum Speed: 10 knots
Maximum Towing Speed: 5 knots
Anchor: Bow - 2 x 600 kg, Stern - 1 x 1500 kg
Anchor Chain: Bow - 25 (mm) õ 100 (m), Stern - 43 õ 125
Windlass: electrical - 7,5 kW
Tugged Winch: electrical - 22 kW, Å-339 10ÌÐ (NORS9366)
Capstan: electrical - 11 kW, NORS-736S1
Main Engine: 6×ÐÍ36/45 350 rpm, 2 x 1000 hp (2 õ 736 kW)
Fuel Type: MDO
Propeller x 2
Rudders/Steering Gear: 2 electrical x 5,5 kW
Generator: 2 x 165 kW
Auxiliary Engine: 1 x 55 kW
Bollard Pull: 25 t
Winch: menocylinder x 1
Tow line: 500 m, diameter 39,5 mm
Radio Equipment: GMDSS
VFH FM two-way: 3 (GMDSS) + 3 add.
DGPS: SPR-1400
NAVTEX: Samyung - SNX-200
Monitors: Local / Navigation bridge
Fire Pump Capacity: 51 m3/hour
AS: 06.2005
Price idea: 700 000 USD
Location: Russian Far East
