F138 - PELAGIC TRAWLER

View1 View2 View3 View4 View5 View6 View7 View8

Type: Pelagic freezing factory trawler with RSW tanks
Built: 1980, Holland
Lengthened: 1983 - completely upgraded and renewed in 1999, 2001
GT/ NT: 1737/ 704 t
DWT: 1770 t at 6.2 m
Length o.a.: 77.30 m
Breadth: 12.50 m
Main Engine: MAK 8M453AK, 3200 h.p., 600 rpm (overhauled 99/ 2001)
Engine has heater for heavy oil, however it has been using gas oil for the last 10 years
Consumption: 8.5 ts MGO at 14 knots total including aux. engine and 0.5 - 1.0 t when not using freezers

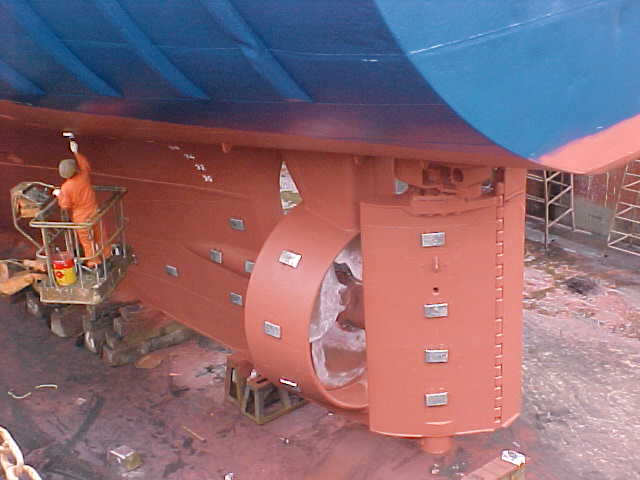

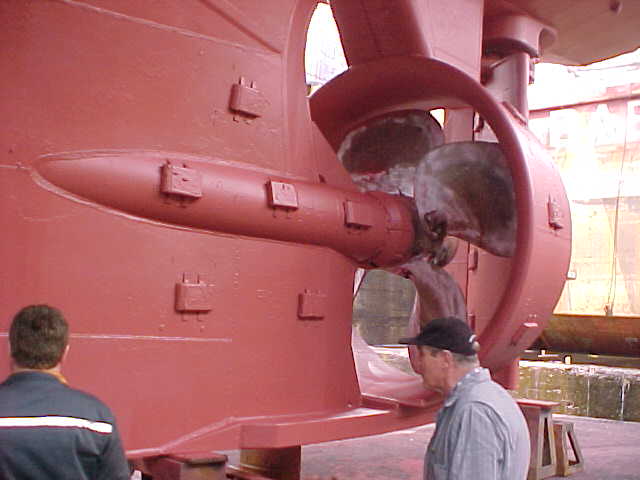

Berg controllable pitch propeller in stainless steel 4 blades
Stainless steel kort nozzle

Technological equipment:
1. 19 x Jackstone vertical plate freezers, capacity 1000 kg in one load. Total capacity up to 100 ts/ 24 hrs
2. 1 x Kvarner horizontal freezer, capacity 8 t/ 24 hrs
3. Electronic weight scale MAREL - 2 pcs and 2 x POLS (Iceland) with label maker and automatic strapping machines
4. Equipment to produce salmon caviar in small bags of Japanese standard (7.5 kg), capacity up to 8 t of caviar/ 24 hrs

Ref. equipment:
1. 4 x piston compressors Grasso RC8411 (Holland) provides work of freezers
2. 2 x piston compressors Grasso RC311 provides work of system to chill fish in accumulating bunker
3. Compressors Sabroe TSMC 116S and Sabroe 108S to chill holds
The all compressors have been overhauled in 2001/ 2002.

Holds: 2 holds, 2 tweendecks, total capacity 1970 cbm, allow to transport up to 1000 Mt of frozen product in 20-25 kg blocks

Navigation and fish-finding equipment:
Radar Furuno, Racal Decca
2 x GPS Furuno GP-80
Echo sounder Furuno
Fish-finding sonar Vesmar 800/110
Gyrocompass Anshutz 20
Electronic charts Transas Navifisher
GMDSS region A3
Inmarsat B
Weather fax Furuno 208
Equipment of control trawl Vesmar 705

Fishing equipment:
Trawl made by Swan (Ireland), made from over firm material SPECTRA.
Max perimeter of trawl untwist 1024 m
Feature of material SPECTRA - low specific gravity with over firm breaking load which provides increasing speed of trawling till 5.5 knots by this trawl which was made by individual order for this vessel
Trawls made in Russia
2 x pair of trawling boards

Inspection: Russian Far East
