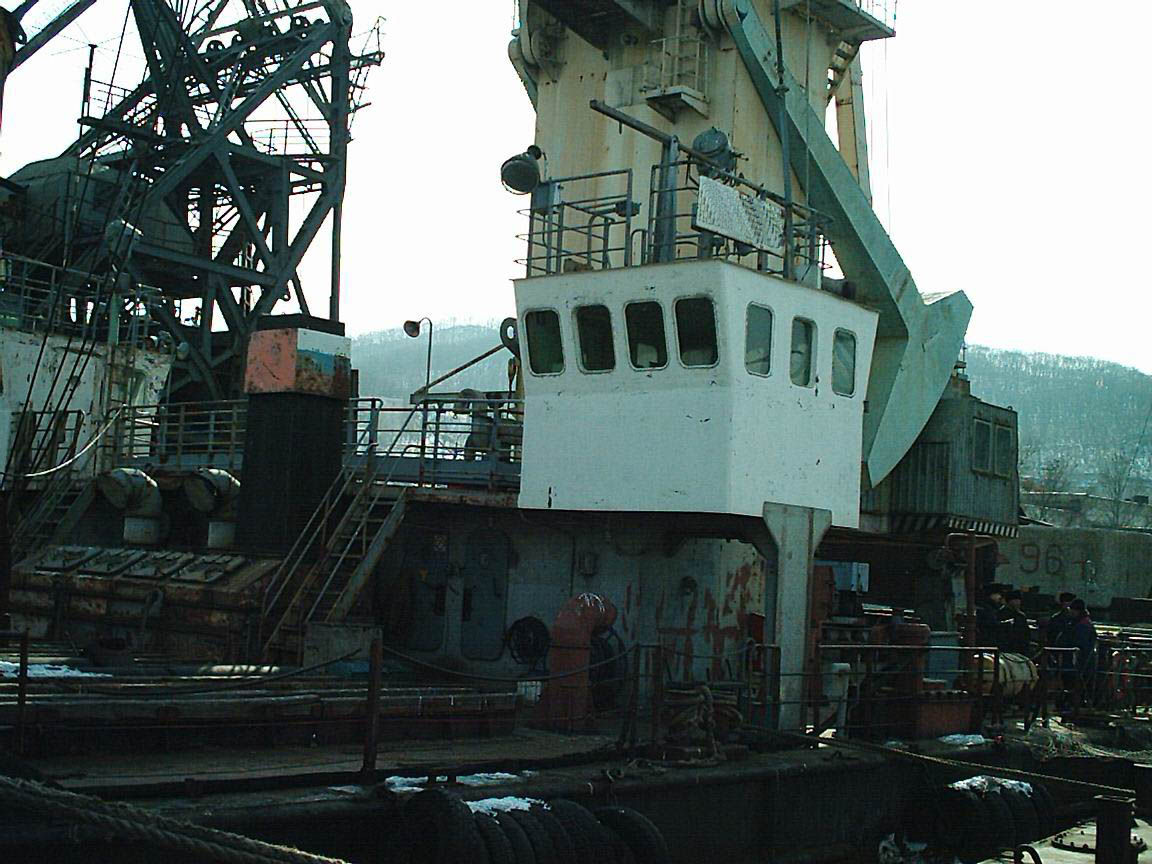

A30 - Self-propelled, Revolving Floating Crane 35 t

View1 View2 View3 View4 View5 View6

Class: KM * L3 III Floating crane
Built: 1988, Hungary
Next Special Survey: April, 2006
Dims: 36.5 x 18.50 x 3.20 m
Draft: 2.2 m
DWT: 211 t
GRT/NRT: 606 /181 t
Light Displacement: 833 t
Full Displacement: 1050 t
Accomodation: 8 persons

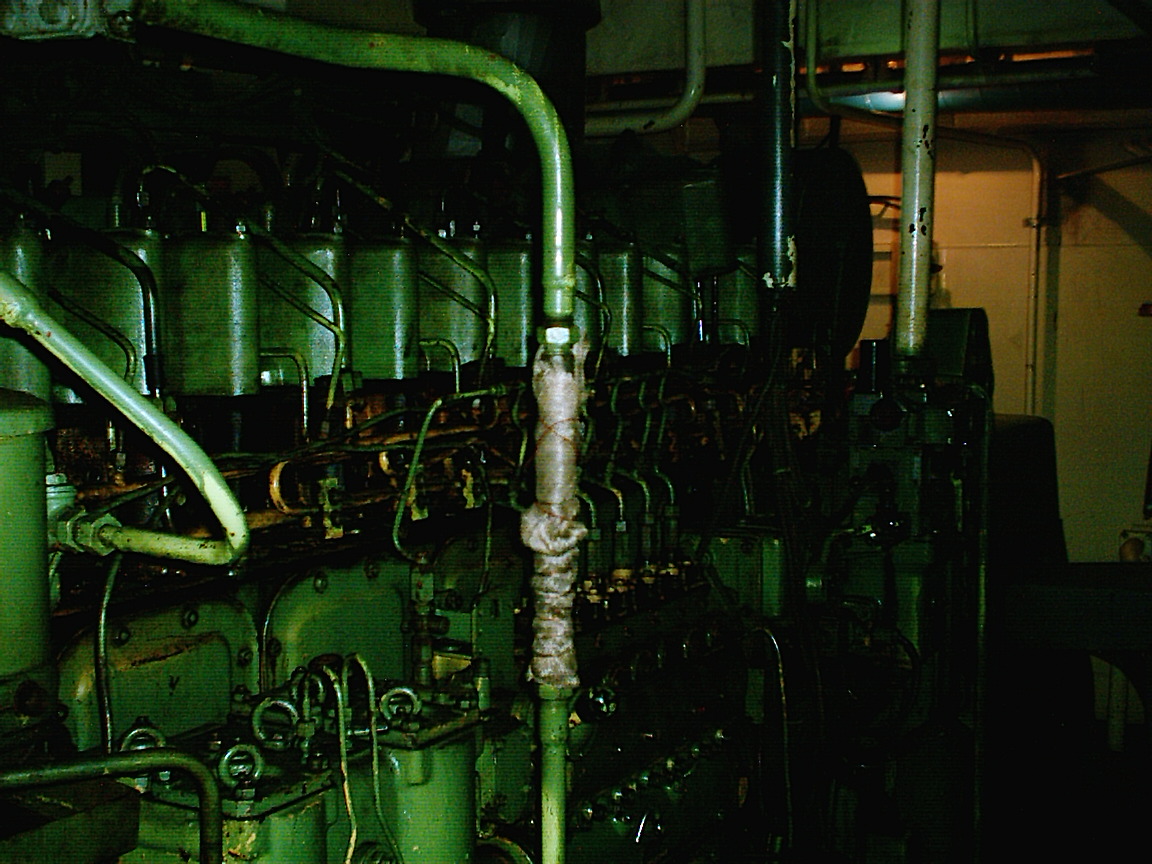

M/E: 1 X 6DV 26/20 AL-1, POWER 1 X 530 kwt
M/G: 2 x SSEE 568-6v, POWER 2 X 480 kwt
Auxiliary Generator: GSS 103-8 M, 1 x 100 kwt
Lifting Capacity (Main lifting) : 35 mt
Max Outreach: 22,5 m
Min Outreach: 9,5 m
Load board:100 cbm
Deck Cargo: 140 - 105 t
Whinch: 3

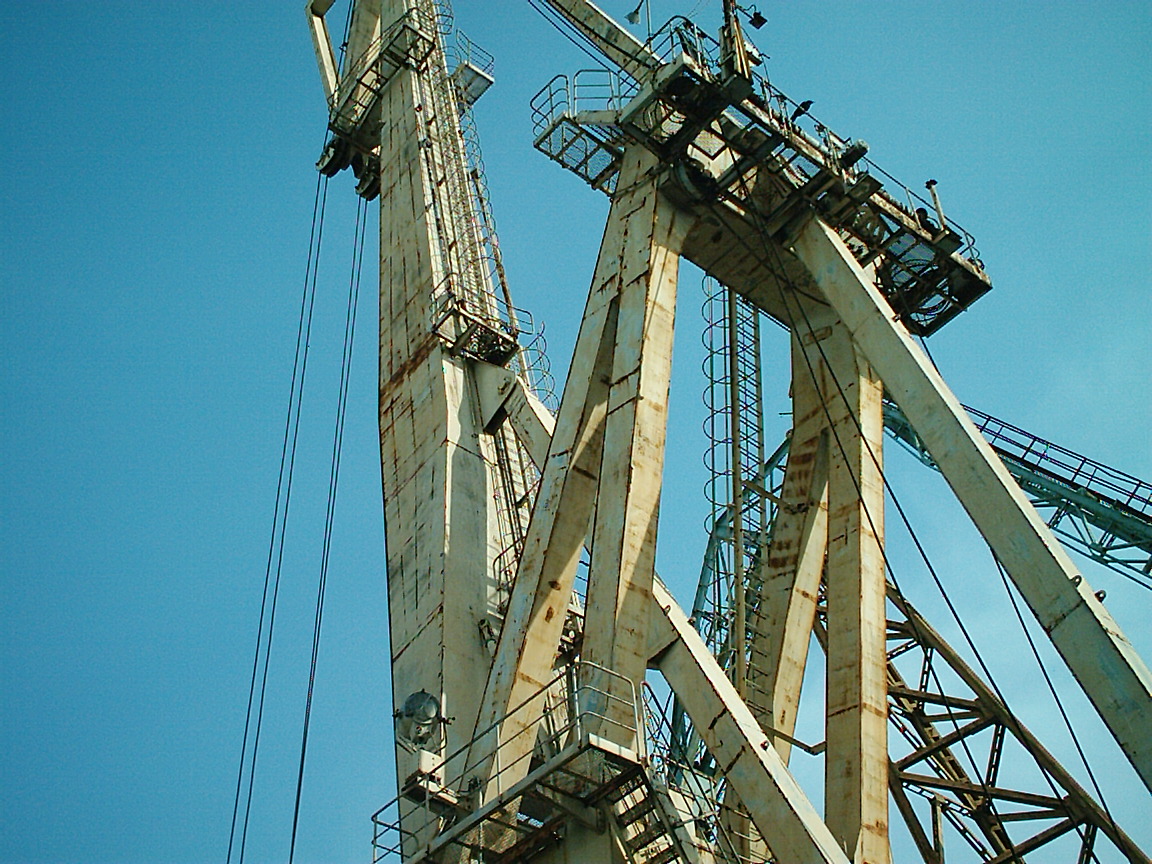

Crane: slewing
Derrick: 1

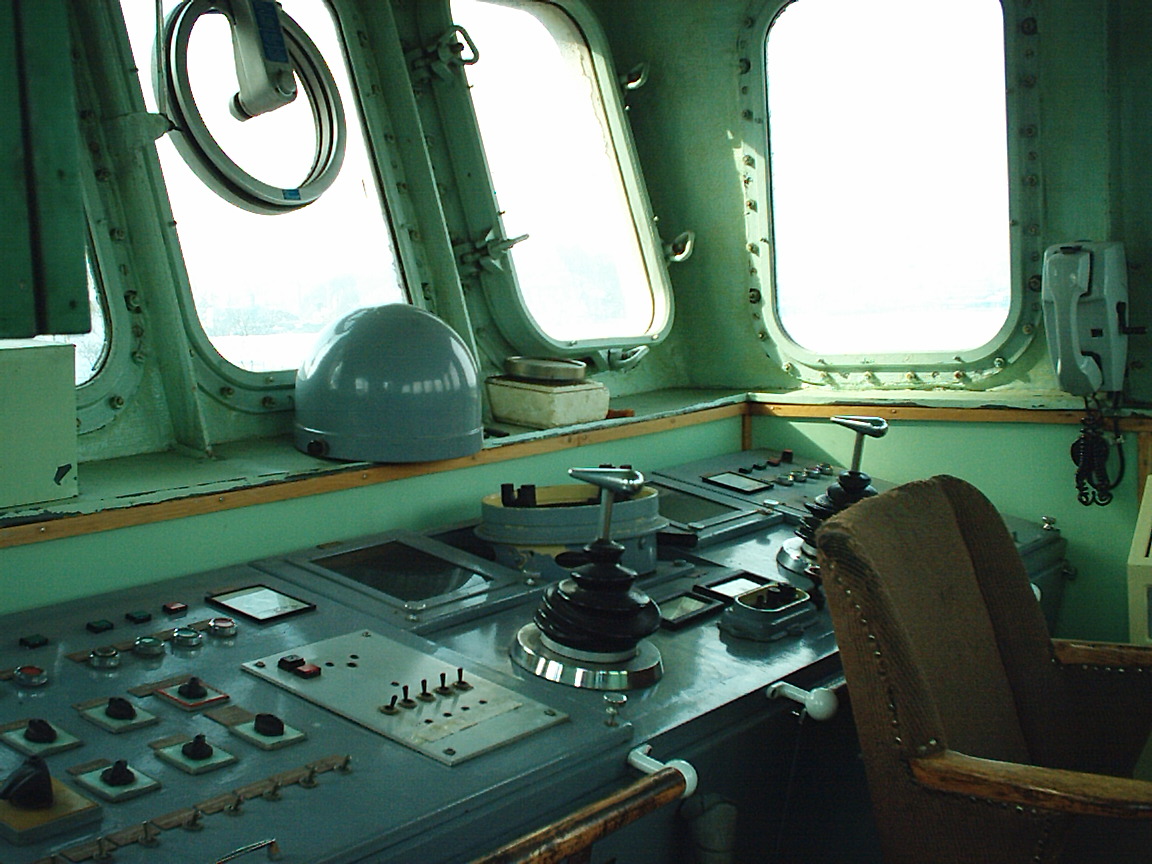

Steering control: water-jet propeller with cross-shaped culvert
Autonomy: 20 days
Delivery: Russian Far East
Price idea: 650,000 USD
