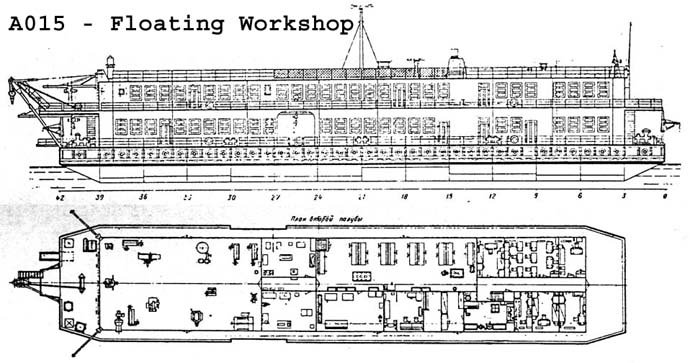

A015 - Floating Workshop
Type: stand by non-self-propelled floating workshop with ferrous hull and metal building, composite construction (ferro-concrete)
Classification: * «R»
Built: 1987, Bulgaria (Burgas)
L max: 67,5 m
L calculated: 62 m
B max: 13,4 m
B calculated: 13 m
D max (light from waterline to upper line of building): 10 m
D: 3,7 m
Loaded/light draft: 1,95/1,71 m
Displacement: 1254 t
Generators GSS 150/400, operational, 2 pcs
Stand-by generator 25/400, operational, 1 pc
Main distributional panel – in working condition, cleaning is required, electrical power consumption counters are removed.
Painters’ area: rotary parallel vice 2 pcs, fitters’ bench MSH-130 2 pcs, hardening tank 1 pc, two-horned anvil 2 pcs, forge 1 pc
Blacksmiths’ area: tinsmiths’ square l=1500 1 pc, table for zig-machine 1 pc, fixed double grind-stone SHP400’2 1 pc, instrumental box SHI-105 1 pc, zig-machine manual 1 pc, fitters’ bench MSH-250 1 pc, plate for tinsmiths’ works 1 pc
Tinsmiths’ area: control switch-board of crucible furnace 1 pc, crucible furnace 1 pc, parallel rotary vice B=120 mm 1 pc, fitters bench with safety grid MSH-130 1 pc, plate for coppersmiths’ works 1 pc, hearth for coppersmiths’ works 1 pc, bath for chemical degreasing 1 pc, bath for hot washing 1 pc, bath for chemical pickling 1 pc, bath for washing with cold water 1 pc
Tinsmiths’ area on upper open deck: universal drilling lathe BK-081 1 pc, sea clocks 5-2-4 m, foundation (assembly) for plates 1 pc, parallel rotary vice B=120 mm 20 pcs, fitters bench without safety grid MSH-250 4 pcs, fixed double grinder with 2 abrasive rounds SHP40012 1 pc, shelving storage for materials 6 pcs, table drilling lathe PN-161 1 pc, assembly cast iron plates 1000x2000 1 pc, fitters bench with safety grid MSH-250 6 pcs
Area of testing and regulating of fuel system: two-folding box 1 pc, parallel rotary vice B=120 mm 1 pc, stand for working out and assembly of fuel pumps 1 pc, table drilling lathe PN-161, diameter of drilling 12 mm 1 pc, oil settler 1 pc, press for manometers’ testing 1 pc, stand for testing and regulating of fuel pumps KI921M 1 pc, stand for injectors’ assembly 1 pc, bench MSH-130 3 pcs, stand for testing the injectors of fuel pumps of high pressure KI-382 1 pc, bath for parts washing 1 pc
Coppersmiths’ area: power switch-board #7 1 pc, switch-board of normal lighting #4 1 pc, testing switch-board 1 pc, rectifier selenium PNK 24/25EP 1 pc, rectifier selenium PNK 115/40 1 pc, rectifier selenium PNK 230/20 1pc, transformer 3-phased (spray preventing) TSZK-25/04, 380/220 1 pc, fitters bench with safety grid MSH-250 1 pc, table drilling lathe PN-161 1 pc, switch-board for electric repair area 1 pc, shelve-storage for materials 2 pcs, reeling lathe AM-605 1 pc, parallel rotary vice B=120 mm 5 pcs, bath for washing 1 pc, drying box 1 pc, instrumental box 3 pcs, tinsmiths’ bench with safety grid MSH-130 4 pcs
Electric repairing area: two-winged box 1 pc, shelving for acid accumulator charger 1 pc, bath for acid electrolyte 1 pc, steel bath for alkaline electrolyte 1 pc, parallel rotary vice B-120 mm 1 pc, fitters bench with safety grid MSH-130 1pc, shelving for alkaline accumulator charger 1 pc, charging terristor rectifier EPK 80/60 ach 2 pcs
Accumulators charger area: shelve-storage for materials 20 pcs
Storage for material casting and spareparts
Clothes drying room: hanger 1 pc, tray under hanger 1 pc, rack for clothes drying 1 pc, shelving 3 pcs
Waste container 2 pcs
Corridor of upper opened deck (shp. 25:26) : power switch-board #2 1 pc, switch-board of normal lighting 1 pc, ventilation switch-board 2 pcs
Radio repairing area: indicator UVD “Ogosta” 1 pc, main device USP “Ogosta” 1 pc, net device B 1 pc, indicator USP “Ogosta” 1 pc, receiver-transmitter device P 1 pc, shelving for radio equipment 1 pc, automatic telephone station 1 pc, parallel vice B=80 mm 2 pcs, table half-soft 2 pcs, shelve for books 600 pertinax 1 pc, instrumental box SHI-105 1 pc, metal box for clothes 1 pc, shelving storage for materials 1 pc, fitters bench MSH-130 2 pcs
Area of reefer aggregates repairing: switch-board for testing refrigerators 1 pc, metal box for clothes 2 pcs, bathes for density testing 1 pc, parallel vice B=80 1 pc, fitters bench MSH-130 1 pc, shelving storage for materials 3 pcs, fitters bench MSH-250 1 pc, vacuum pump VZ-2/20/79-1V 1 pc, parallel rotary vice B=120 2 pcs
Laboratory: wash-stand faience 400x500 1 pc, table for hardness measuring device (Rockwell) 1 pc, laboratory table 1 pc, table for analytic weighs 1 pc, still (direction 380 V, H=4 KWT) 1 pc, hood 1 pc, table for hardness measuring device (Foingle) 1 pc, hardness measuring device (Foingle) 1 pc, hardness measuring device (Rockwell) 1 pc, shelving storage for materials 1 pc, bench for still 1 pc, bench MSH-130 2 pcs, box for devices and chemicals 1 pc
Joiners’ area: frequency transformer IE-9405 1 pc, Tsiklon 1 pc, power switch-board #1 1 pc, glue-boiler 1 pc, milling lathe FR-100 28 KWT 1 pc, round-sawing lathe TSB-2 (“D” of saw 400 mm, max thickness of material 120 mm, N=4,5 KWT) 1 pc, reismis lathe RR 061 (planing breadth 600 mm, thickness 200 mm, 4,5 KWT) 1 pc, saw sharpening lathe TCHPA-6 1 pc, tape-dust lathe (dusting thickness 500 mm, N=4,5 KWT) 1 pc, joint lathe AU-630 (N=2,5 KWT) 1 pc, sand grinder “F” stone 400 mm, N=1 KWT 1 pc, table for glue-boiling 1 pc, joiners’ bench 4 pcs
Working boat 4,5 m 1 pc
Fitters&mechanical area: accumulating cut 1 pc, box for accumulators 2 pcs, auto-aggregate for fizzy water 1 pc, vice for pipe-laying 1 pc, cutters NA31421 1 pc, press-cutters combined S229A 1 pc, rolls VOML 6x2000 1 pc, stand for hydraulic testing of fitting 1 pc, stand for testing of tubes 1 pc, pipe-bender IZ3428 1 pc, fitters bench with grid MSH-2501 pc, fitters bench with safety grid MSH-130 1pc, assembly plate 1 pc, radial-drilling lathe 2K-52 1 pc, table for welding works P-72 1 pc, office table TSPK-R G 600x1100 H=750 2 pcs, sea clocks 5-2-4 m 2 pcs, foundation for marking plates 7 pcs, receiver 1 pc, dust extractor 1 pc, vertical lathe of exact dissipating 2578P 1 pc, fitters vice B=120 mm 8 pcs, hack-saw hydraulic lathe ON-253 1 pc, boiling down device 1 pc, instrumental box 32 pcs, fitters bench with safety grid MSH-250 3 pcs, sharpening lathe mono-phased SHTV-200 (2 disks) 1 pc, fixed double grinder SHP400/2 1 pc, shelving storage for materials 6 pcs, fitters bench MSH-130 1 pc, marking plate 1 pc, universal sharpening lathe ZM642 1 pc, drilling vertical lathe VK-031 2 pcs, cross-planing lathe 7305 1 pc, universal round-grinding lathe SHU-321 1 pc, universal milling lathe FU-321 2 pcs, universal lathe S11T 3 pcs, universal S11MT 1 pc, universal lathe S13MV 2 pcs
Comments: some repair is required.
