OIL/CHEMICAL TANKER - T081

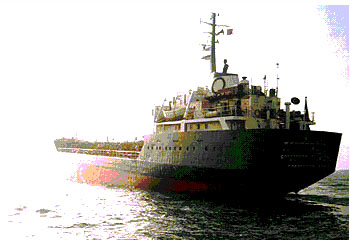

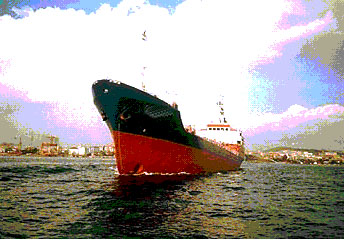

View1 View2

Type: Oil/Chemical tanker
Flag: Russia
Class: Russian KM*0 oil / chemical type 2 (>60 degr C) ESP
Built: 1974, Sweden, Kalmar Varv
DWT: 3003 t
L 85,76 m
B: 12 m
Draft: 5,34 m
GRT/NRT: 1693/911 t
Cargo tanks: 12
Cargo tanks' coating: central tanks - stainless steel, side tanks - Zinc
Capacity: 3221 CBM
Segregations: 12
Tank for collecting of washing water: 1 x 6,55 CBM, 1 x 40 CBM
Cargo pumps (central & side tanks): 12 pumps hydraulic - Frankmohn SD 125-4DU HH90-A325-U - 4 x 100 CBM/HR, VD 4/40 Are Hottuin - 8 x 50 CBM/HR
Auxiliary boilers: Oil Boiler Sanea for tanks heating 2 sets, temperature of central tanks heating is changing from deck
Emergency fire pump: Scania Diesel Driven 35 BM/HR
Steering gear: Tenfjord I-210-2ESG-440
Anchor gear: Hydraulic Driven DD40HR, diameter 30 mm
Mooring gear: Hydraulic Driven SD40HR, speed 0,5 m\sec
Life-Saving equipment: emergency buoy x 1, life-saving boats x 2, life rafts x 2, etc.
M/E: Alpha Disel 18 cylinders, 4 temps simple effet Alpha 18 V 23 L-VC, 1920 KW, 800 RPM, made 1974 Denmark
Auxiliary Diesel Generators: 3 sets, 402 KW
Propeller: CPP B/Alpha V23HU, 3-blades Bronze
Diesel Oil stores: 206,8 CBM
GMDSS: A1, A2
Last DD: March, 2002
SS: due 01 Febr 2005
Trading: Far East
Price idea: region 1 mln. USD
